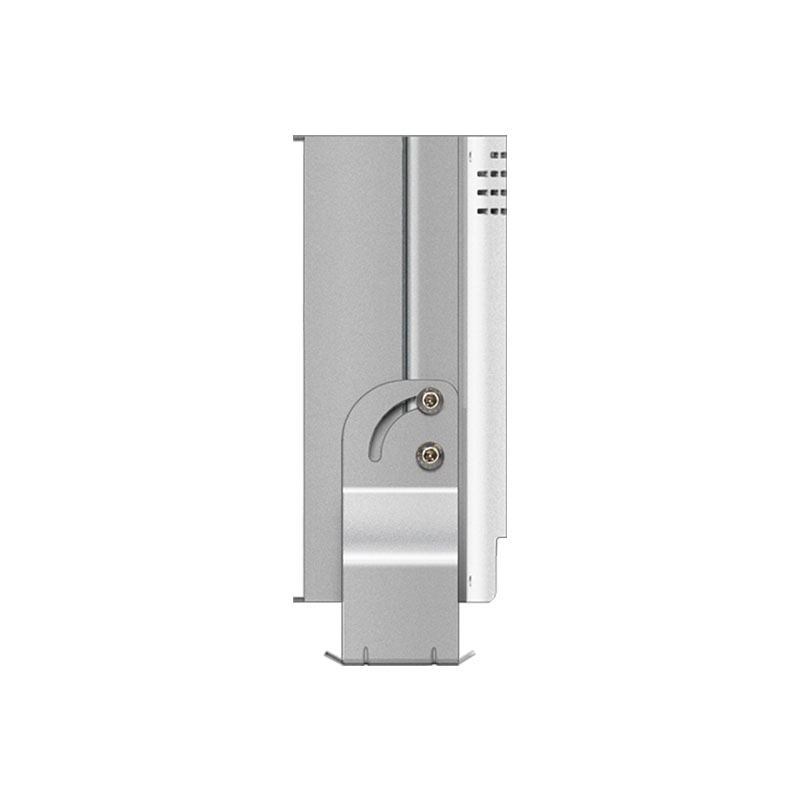

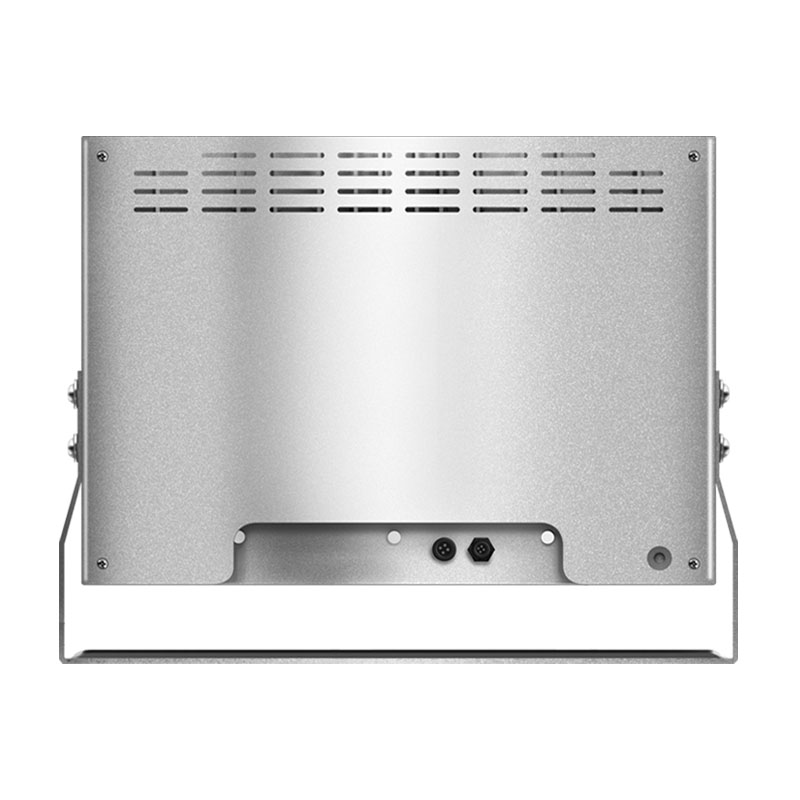

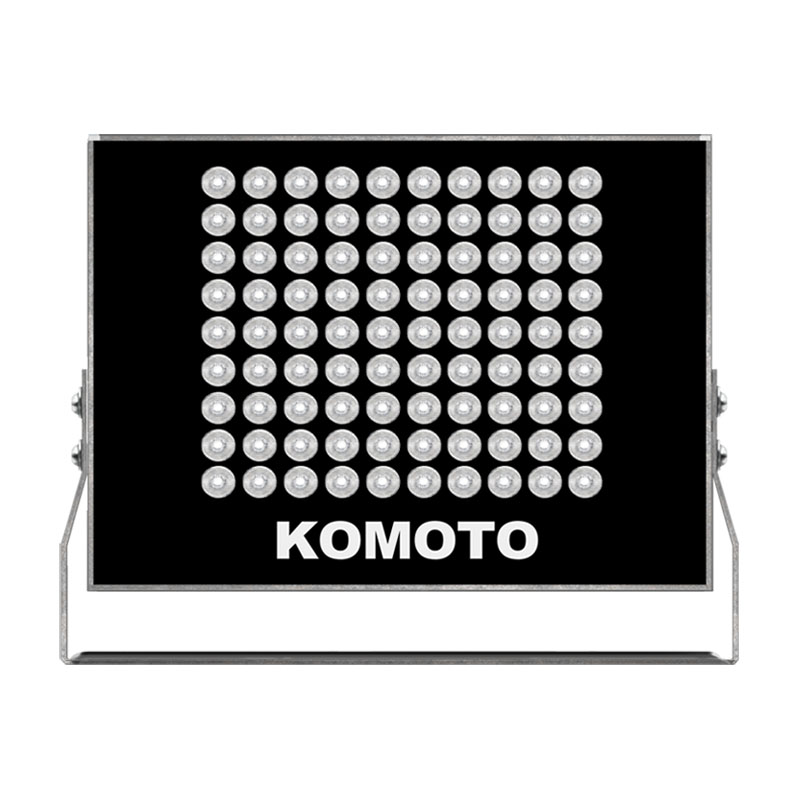

SJ3-N

Intelligent Traffic LED Strobe Illuminator

Features:

v   Compact with Integrated LED Light Source.

v   Auto detects the trigger width with flash duation.

v   Stack effect Design for more efficiency by reducing heat.

v   Extra long life with very low maintenance.

v   IP66 housing for outdoor installation.



Applications:

v   Face recognition behing windshield

v   Automatic number plate recognition

v   Toll management systems

v   Weigh in motion

v   HOV (High Occupancy Vehicle)

v  Speed enforcement







Item Number

SJ3_10-N

SJ3_20-N

SJ3_D-N

Product’s Name

Intelligent Traffic LED Strobe Illuminator

Wavelength

760 nm

Illumination Source

Latest High Power Technology LEDs

Distance

25 to 35m (ANPR model)

Trigger Modes

1. Simple Mode (Strobe combine with continuous limit pulse)

2. Intelligent Mode (Trigger width = Flash width)

3. C.C.S. (Continued Combine Strobe)

Max. Trigger Frequency

10 kHz

Max. Pulse Width

0.1~1.6ms

Trigger input opto isolated

DC3.3V to 24V opto-isolated

Beam Angle

10 degree

20 degree

H40xV15 degree

Control/ Communication

RS485 interface

Operating Temperature (°C)

-20~+60 degree (cold start at -40 degree)

Weather Proof

IP66

Power Requirement

DC 24V/ 4.5A
