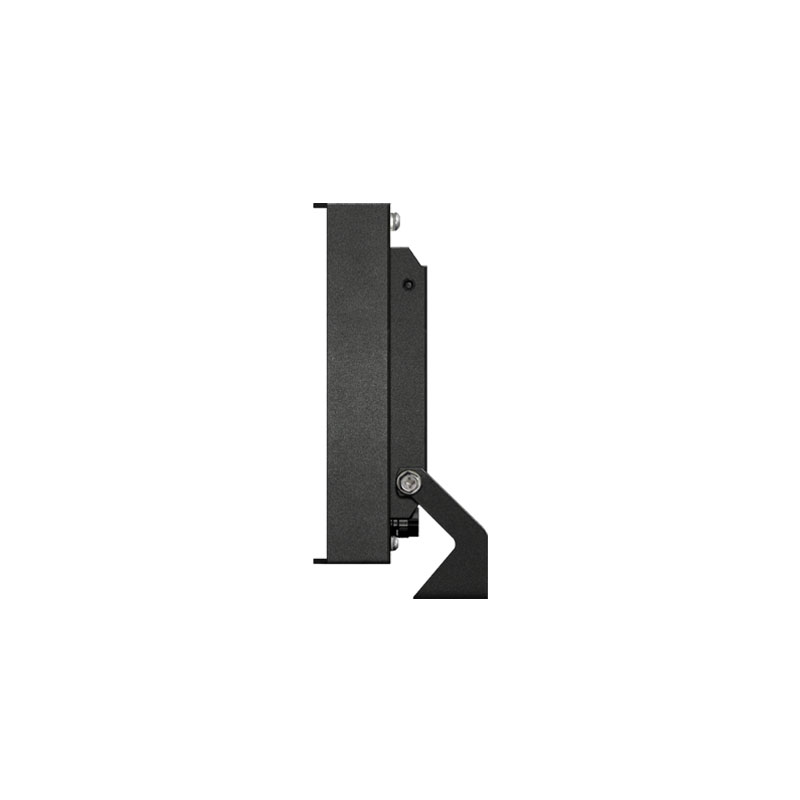

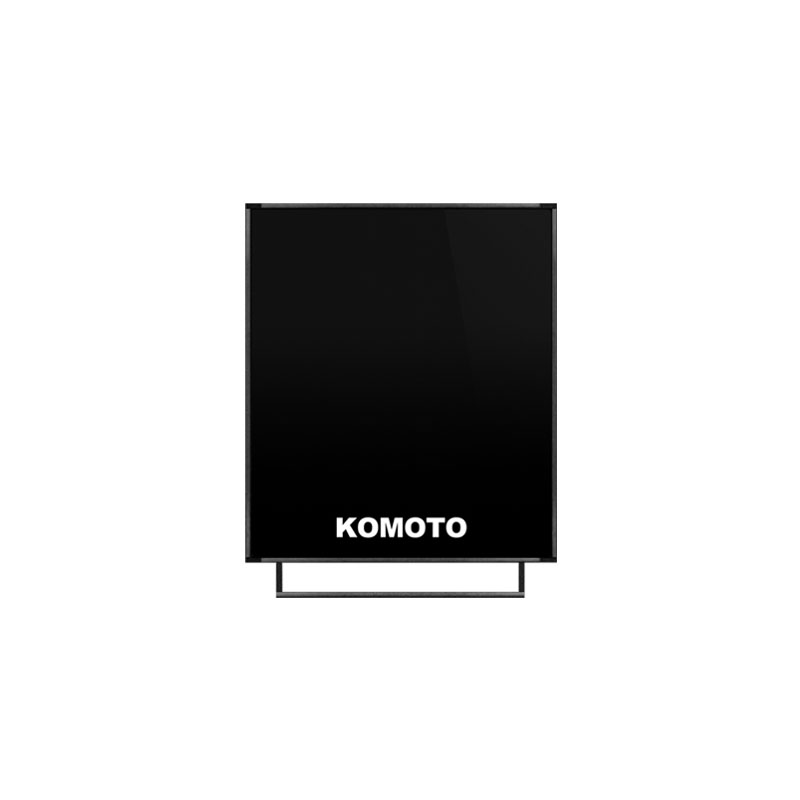

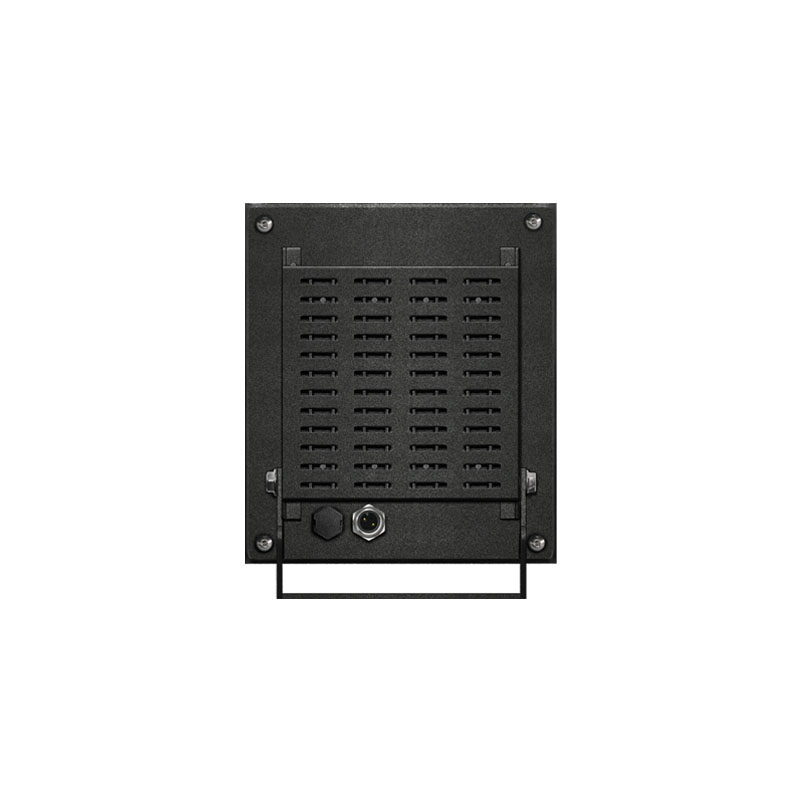

HV24-N

Integrated LED Strobe

Features:

v   Ideal for Traffic Application.

v   Extra Long Life with Very Low Maintenance.

v   IP66 Housing for Outdoor Installation.

v   Compact with Integrated LED Light Source.

v   Pulsing range can be adjustable from 1.6K~30KHz.

v   External trigger or free running strobe.

v   Synchronized support with video camera (NTSC&PAL)



Applications:

v   Automatic number plate recognition





Item Number

HV24_10-N

HV24_20-N

HV24_D-N

HV24_60-N

Product’s Name

Integrated LED Strobe

Wavelength

NIR 850 nm

Illumination Source

 High Power LEDs

Light Drive Power-Pulsed

360W

Distance

3~20 m

Trigger Modes

Strobe Mode (Strobe combine with continuous limit pulse)

Max. Trigger Frequency

10 kHz

Max. Pulse Width

1.6ms

Trigger input opto isolated

DC3.3V to 24V opto-isolated

Beam Angle

10 degree

20 degree

H40xV15 degree

60 degree

Control/ Communication

RS485 interface

Operating Temperature (°C)

-20~+60 degree (cold start at -40 degree)

Weather Proof

IP66

Power Requirement

DC12~24V/ 1A
